Drag & drop layout (DNN)

Forms aren't single columns. The palette's Layout group builds structure — rows with columns, a 12-column flex grid, section breaks, HTML blocks — and every field on the canvas can be dragged into place by its handle.

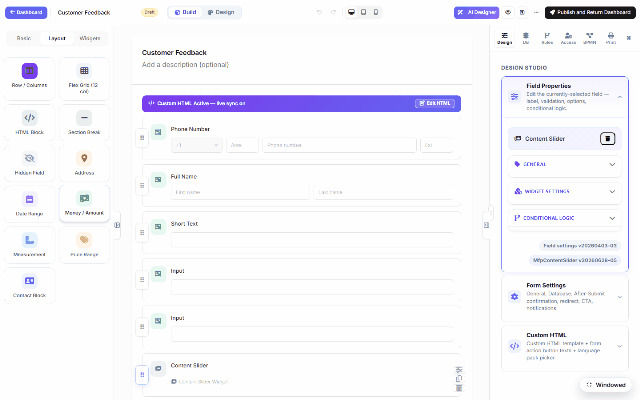

Layout tools on DNN: the Layout palette group (Row/Columns, Flex Grid, HTML Block, Section Break…), adding a row, then dragging a field by its handle to reorder

The Layout group

Item Use
Row / Columns A row with 2+ columns; drop fields side by side (First/Last name, City/ZIP).
Flex Grid (12-col) Finer control — each cell spans N of 12 columns, responsive.
Section Break Titled separators that structure long forms.
HTML Block Free content between fields (sanitized server-side).
Hidden Field Values submitted but never shown.
Address / Date Range / Money / Measurement / Price Range Composite presets — one palette click drops a whole preconfigured group.

Moving things

  • Reorder — grab a field's ⠿ handle and drag it above/below any other field; a drop indicator tracks the target as you move.
  • Into columns — drag a field into a row's column; drag it back out to leave.
  • Click-to-add places new palette items at the end — drag afterwards to position, or select a field first and the next added item lands after it.

Multi-step forms add another level: the wizard's multi-step toggle (or the builder's step bar) splits the canvas into pages with their own progress indicator — layout works the same within each step.
